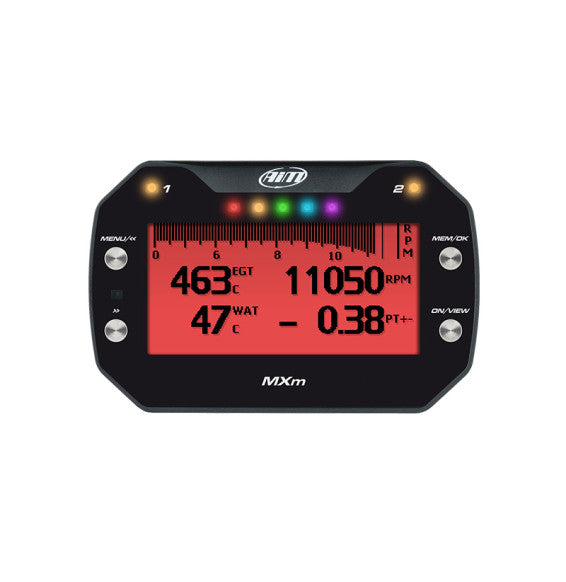

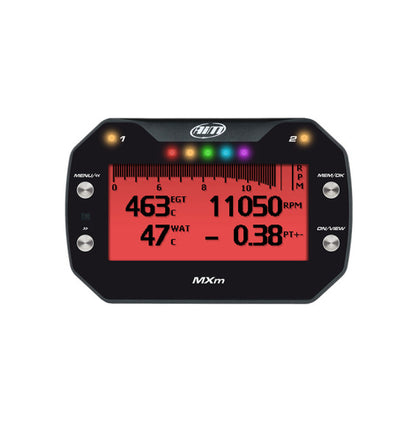

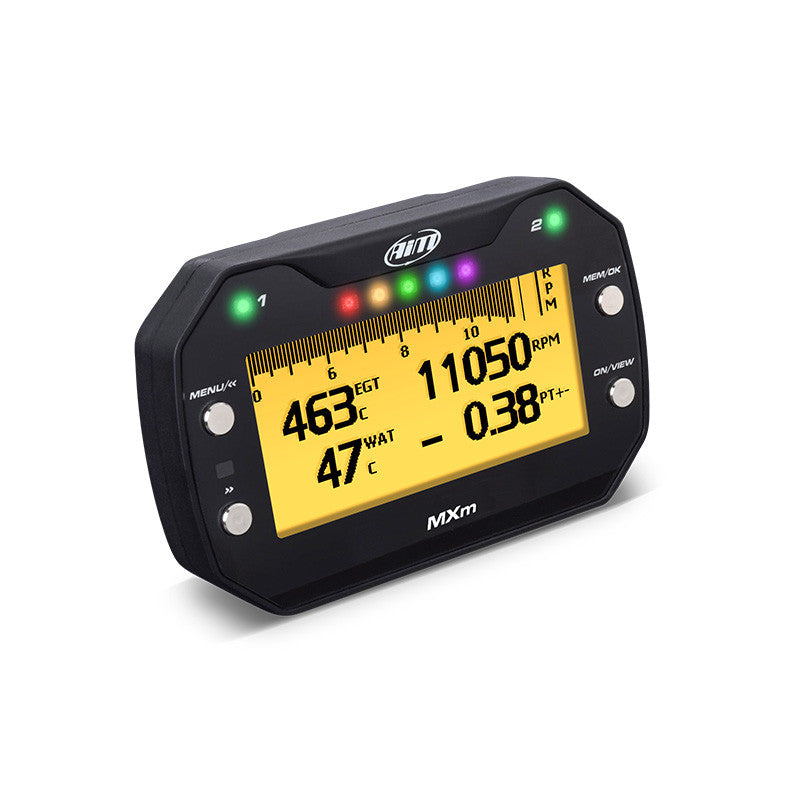

The compact MXM dash display unit features advanced data logging capabilities and is designed for racers needing all the essential information to monitor the behaviour of their car and to improve their performance. This dash is designed to acquire and display data from your car's ECU, as well as from the internal GPS receiver, analogue/digital inputs and predefined math channels.
A Wide Range of Data Sources
he MXM dash display features 2 CAN connections for obtaining information directly from the car's ECU, with a wide range of compatible ECU systems available to choose from. The MXM offers the most straightforward method of installation whilst offering 4 analogue and 2 digital inputs for additional data input.
Two Power Outputs
The MXM data logger features two power outputs that can drain up to 15A each. These outputs can be configured to turn on or off depending on the value of the analogue or digital inputs. This functionality allows you to automatically control external systems, such as switching additional lights on or off or activating and deactivating cooling fans or circulation pumps when specific events happen.
Integrated Shift Lights & Alarms
The MXM car display has an integrated shift light system that features 5 fully configurable LEDs, which can be customised to your requirements and for each gear. Two further LEDs can be configured to operate as warning alarms, allowing you to customise colours, alarm types (solid or flashing), flashing frequency and accompanying text messages. Alarm priorities can be set to suit your specific requirements.
Sharp Liquid Crystal Display
Making use of a sharp liquid crystal display (LCD), you can select which information you want the MXM dash to display, and the backlight can be switched between a selection of available colours, all with high contrast and easy-to-read graphics.
Data Recall On-Screen
The information that is displayed on the screen can be fully configured to prioritise the most important information to you. If there’s too much information on the screen, you can scroll between multiple pages using the integrated buttons so that nothing is missed.
After the session has ended, all the data can be recalled on the screen, including a summary of your best laps along with max/min RPM, speed and temperatures. If you prefer going through the data in more detail, the MXM features a Wi-Fi function to enable fast and secure data transfer to a laptop or PC up to 50 metres away, so you no longer need to take the laptop to the car.
SKU:X87MXM000
Included:
37 Pin Harness, DTP 06-4S 4pin connector with pins

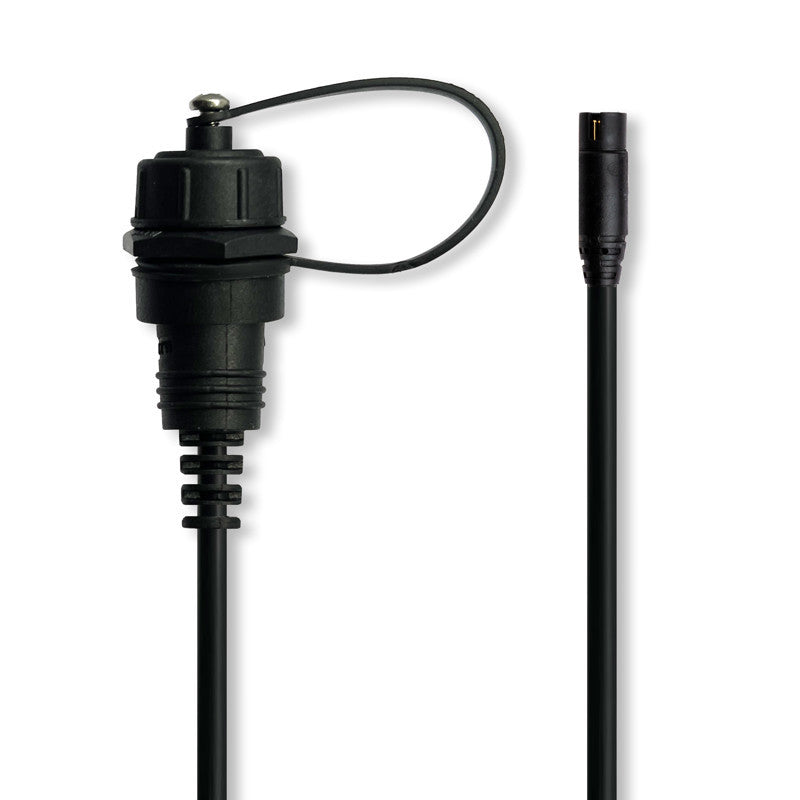

USB download cable
